Outdoor Stadium Perimeter LED Display High Brightness High Refresh Rate

【Brief】：
Die casting aluminum cabinet design with a hanger lock connection, light weight,thin body, easy and fast installtion.

High brightness and contrast, display is still clear and beautiful even under direct sunshine.

Both support hanging and standing installation, can be additionally equipped with anti-collision cushioning foam on the top of the box for use in large stadiums.

This series standard with high-quality power plug and network cable plug, improve the stability of
【Series】：Creative Display solution

Description

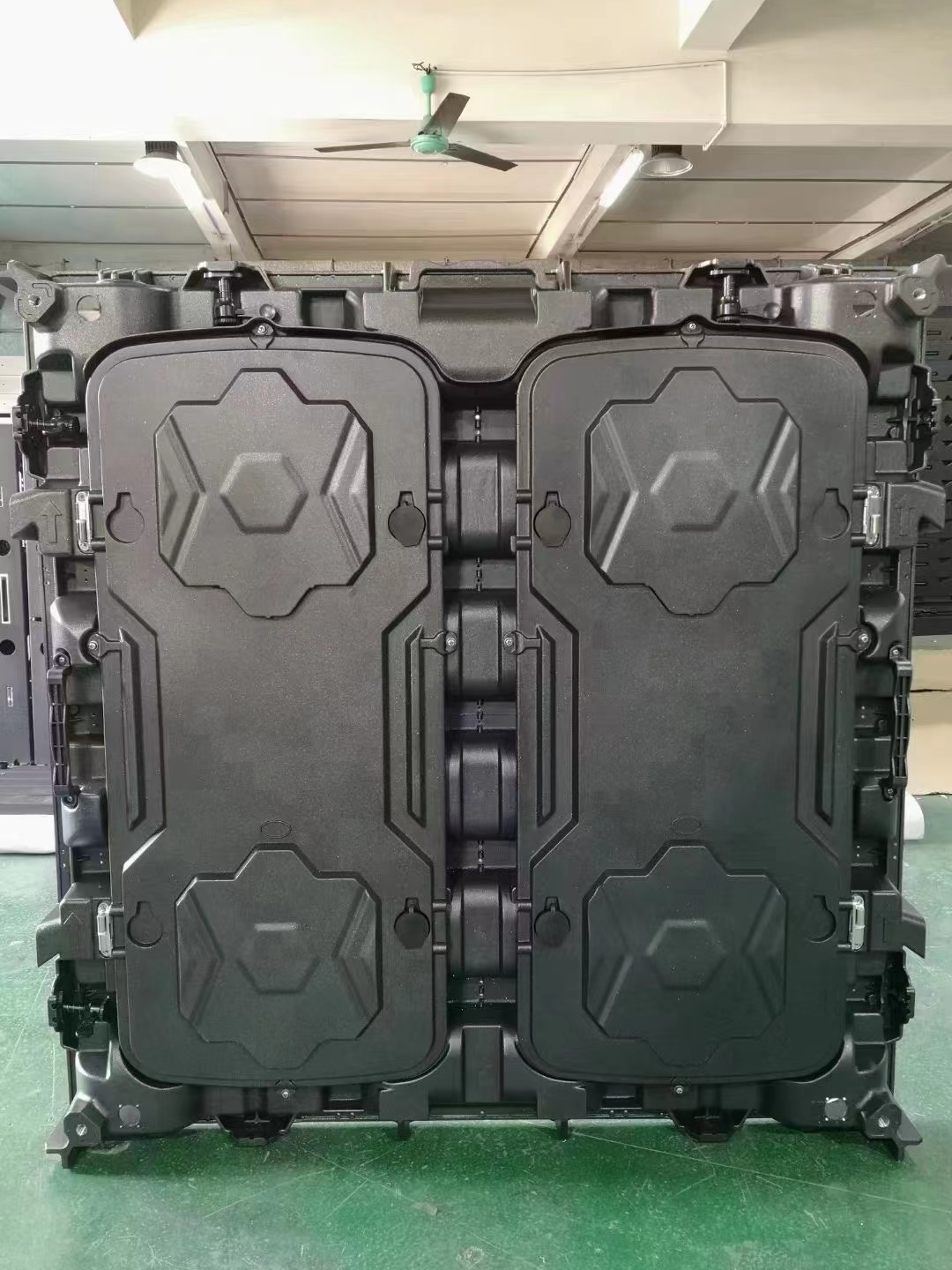

1. Light-Weight & Slim CabinetStadium led display panel is equipped with magnesium alloy cabinet with 30kg/pc only. It is 30% lighter than traditional waterproof cabinet. The thickness is assembled with only 120mm. It can be fixed, hanging and rental applications
for such multifunctional cabinet. Cost and time-saving for installation and transportation.

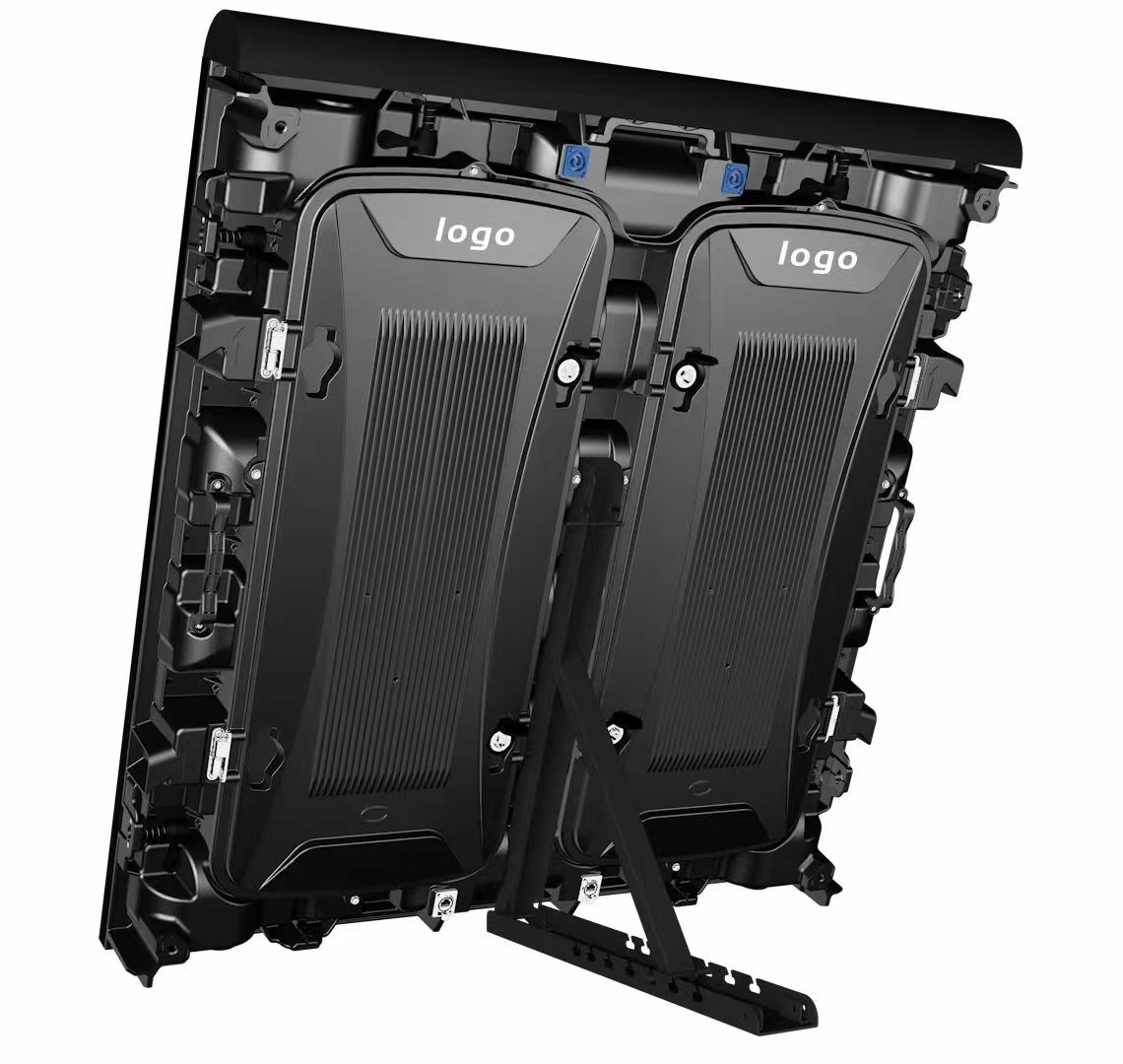

2. 0-90° Adjustable Supporting Bracket

Cabinet viewing angle is between 60-90 degree with high flexiblity. Perimeter led display can be adjusted according to best viewing effect to enhance viewer's visibility.

3. Rubber Module Mask and Protective Top Cover

Our led module is equipped with rubber module mask. LED could be well protected from ball hitting with such design. Special unique soft top cover design could protect players from injury even for body hitting. The design philosophy of our perimeter led board is to maximize the protection of personnel.

4. IP65 Protection and High Brightness

Special cabinet design for indoor and outdoor applications, perimeter led display is fully IP65 waterproor protection. High durability for long lifespan even in harsh environment. With brightness control at day and night, perimeter led board could be 6000-7500nits high brightness.

5. Fast and Easy Installation

High precision stadium led display cabinet could be fast assembly and connection with 12 seconds. No need for professional technicans and devices. Quick setup and easy maintenance with such cabinet design.

	P6	P8	P10
Pixel Pitch	6mm	8mm	10mm
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B
LED Type	SMD3535	SMD3535	SMD3535
LED Module Size	192*192mm	320*160mm	320*160mm
Module Resolution	32*32pixel	40*20pixel	32*16pixel
Pixel Per SQM	27777dots/m2	15625dots/m2	10000dots/m2
Refresh Rate	1920/3840Hz	1920/3840Hz	1920/3840Hz
Scan Mode	1/4 scan	1/4 scan	1/4 scan
Brightness	>=6500CD	>=6500CD	>=6500CD
Cabinet Material	Die casting aluminum	Die casting aluminum	Die casting aluminum
Cabinet Resolution	160*160pixel	120*120pixel	96*96pixel

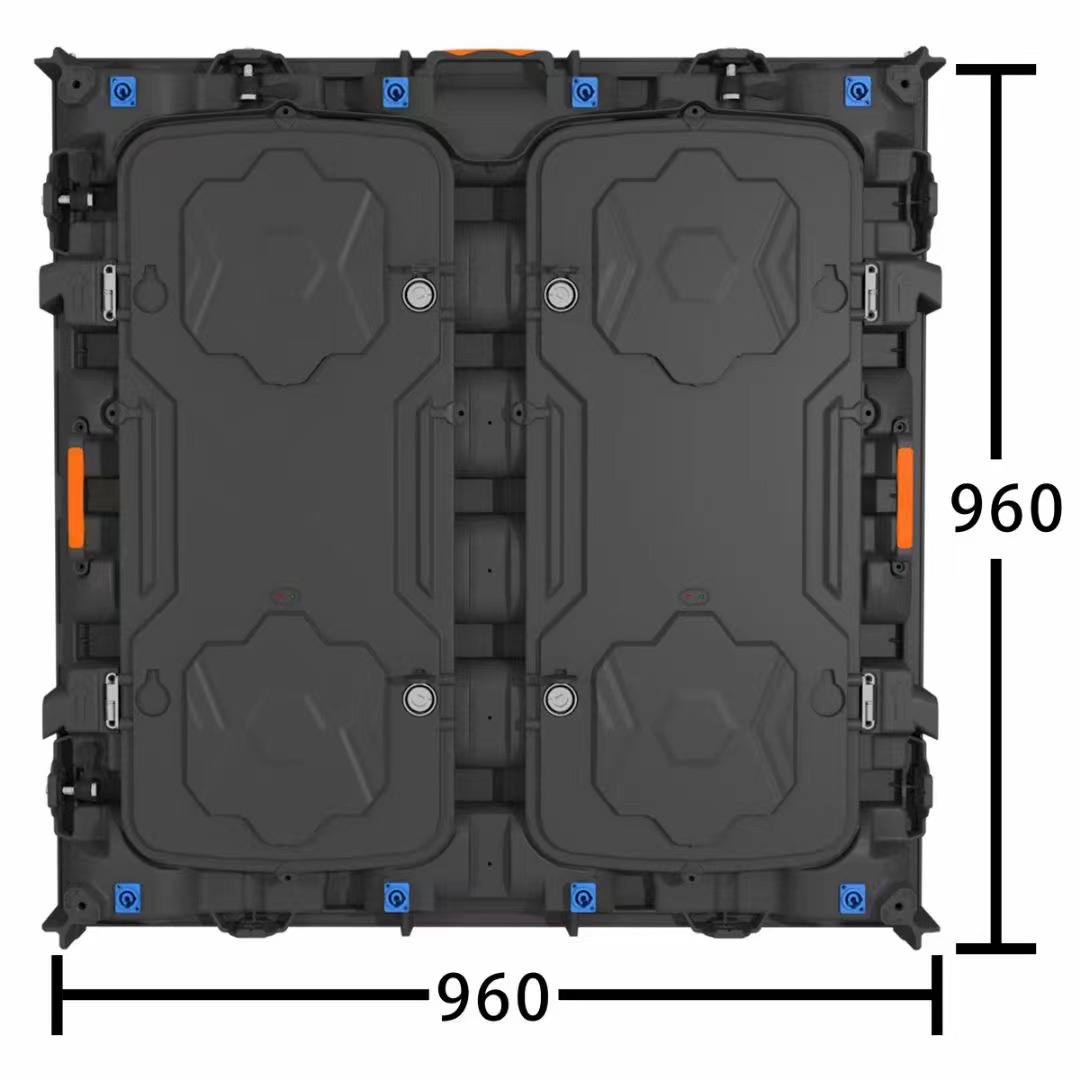

Cabinet Size	960960150mm	960960150mm	960960150mm
Cabinet Weight	30kg	30kg	30kg
Waterproof Grade	IP65	IP65	IP65
Max Power Consumption	780W	780W	780W
Ave Power Consumption	260W	260W	260W
