Entire black package SMD with more than 3000:1 contrast ratio to provide clearer and more natural image displaying.
High Refresh Rate
The ingested picture is stable without ripples and black screen. When displaying the dynamic video, the image edge is clear with better performance. The image information is accurately and truly restored, making the displaying contents smoothly, bringing the audience greatest visual enjoyment. Equipped with anti-gamma correction technology, the video is recorded in an original way, and the display is more realistic and natural. The brightness uniformity of the LED screen is excellent, and the single-point brightness correction is available to make the brightness uniformity of the whole screen perfect.
Mature technical process design with strict IP65 waterproof and dustproof design to guarantee system stability.
|

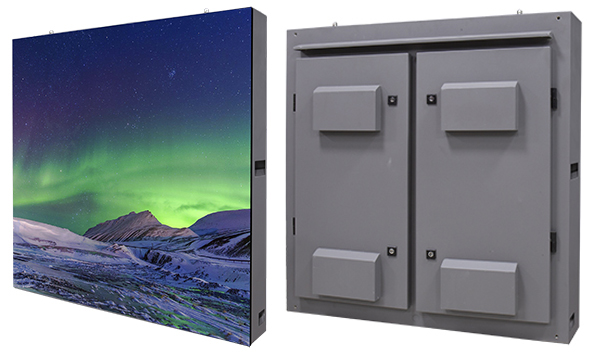

960mm*960mm Outdoor Fixed Full Color LED Billboard
|
|||
|
Item:
|
P10, P8, P5, P4
|
Input Voltage:
|
AC220V/110V,50HZ/60HZ (±10%)
|
|
Model Number:
|
320mm*160mm
|
Output Voltage
|
5V,60A
|
|
Cabinet Size:
|
960mm*960mm
|
Best Viewing Distance
|
≥10m
|
|
Pixel Pitch:
|
10mm, 8mm, 5mm, 4mm
|
Refresh rate
|
2000HZ
|
|
Pixels Density:
|
10000 dots/m²
|
Grey scale levels
|
R(256bit) x G(256bit) x B(256bit)
|
|
Pixel Configuration:
|
1R1G1B
|
Display Colors
|
R(1024) x G(1024) x B(1024)
|
|
Package Mode:
|
SMD3535, SMD2727, SMD1921
|
Working Temperature
|
-20~50℃/10~90%RH
|
|
Pixel Resolution:
|
64dots(W)*32dots(H)
|
Malfunction dot rate
|
< 0.0001
|
|
Drive Type:
|
Constant drive
|
Life-span
|
100,000 hours
|
|
Scan Mode:
|
1/4 scan
|
Warranty
|
3 years
|
|
Port Type:
|
HUB75
|
Cabinet weight
|
35kg
|
|
Brightness of White:
|
7500cd/m²
|
Package:
|
Wooden boxe(4in1) size: 104*80*115cm; Gross weight:165kg
|
|
IP rate:
|
IP65/IP54
|
|
|
